Facts Panels created this way will not update automatically and must be maintained for accuracy. please ensure any changes you make are accepted by your local regional bodies.
If you are using Calculated Nutrients, please ensure all Raw Materials have Nutrients before continuing, further information may be found in Set Ingredient Nutritional Information.
Creating your Nutritional Panel Image:

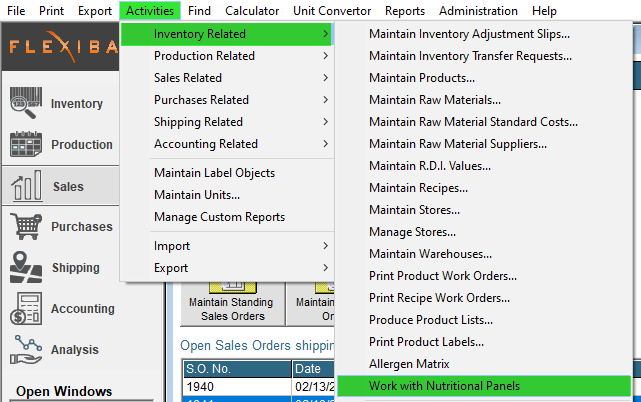

- Log into FlexiBake. Navigate to Inventory Related Activities and find Work with Nutritional Panels.
- Work with Nutritional Panels will open, select the product whos Panel you would like to generate. You may select this by Code or Name.

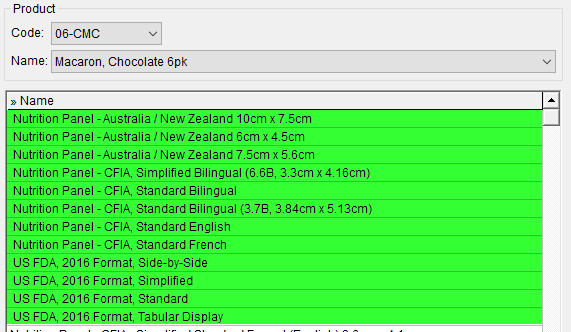

- Next, select a Panel to generate based on your location of sales. Our most recent Panels are highlighted in the image below and are up to date with required regulations.

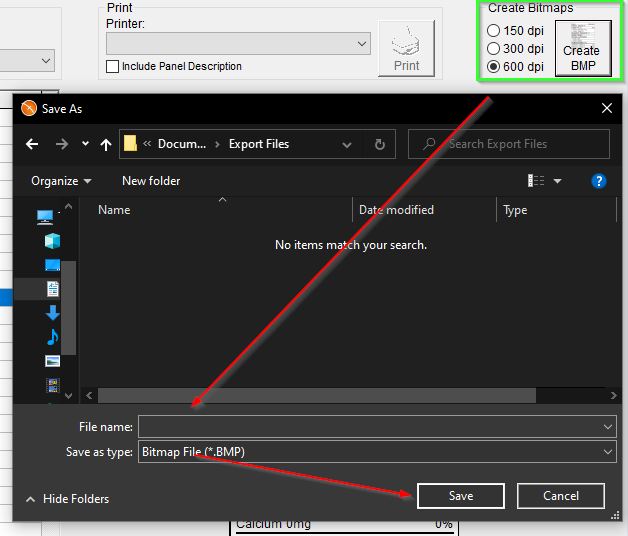

A small preview of the selected Facts Panel will display on the right-hand side. - Select a dpi option from the radial buttons then press Create BMP, you'll be redirected to save the file.
Put this in a known location so that you can access it for the second half of the tutorial!
Your BMP Image will now be available for use in the Integrated Label Designer. If you are on the Cloud Environment, please ensure you have saved this in a location accessible to the Cloud. see Transfer Files to/from the Cloud for instructions.
Adding your NFP to the Label:

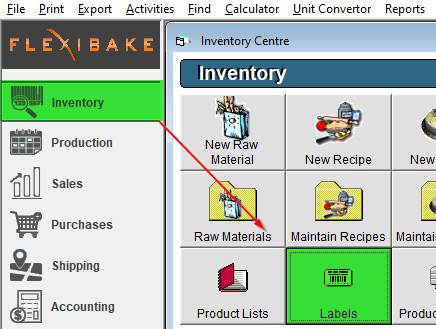

- Return to the Inventory Centre and select the Labels button.

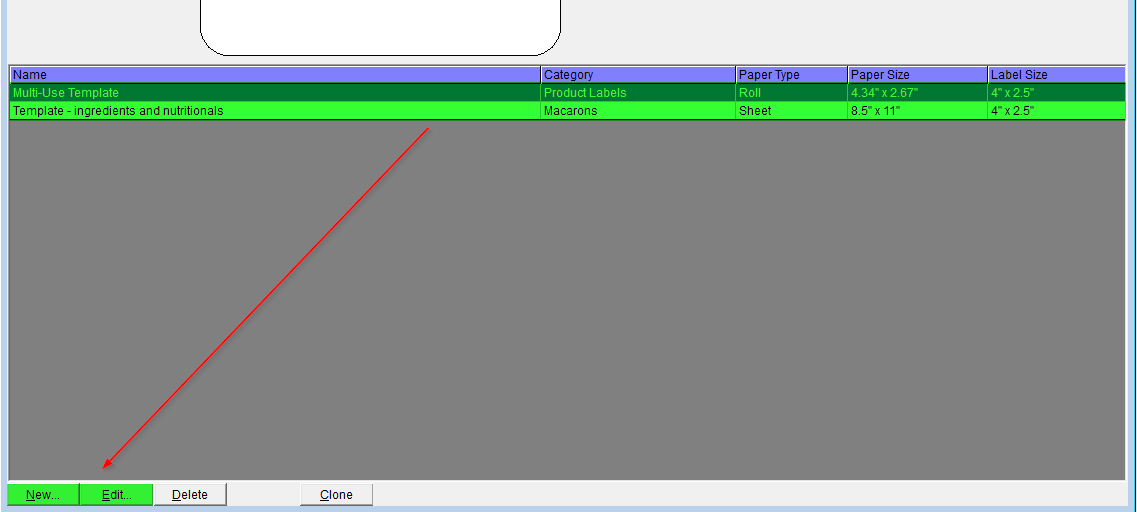

- If you have already created a label, open it now. Or follow the guide for our Integrated Label Designer to create a new one.

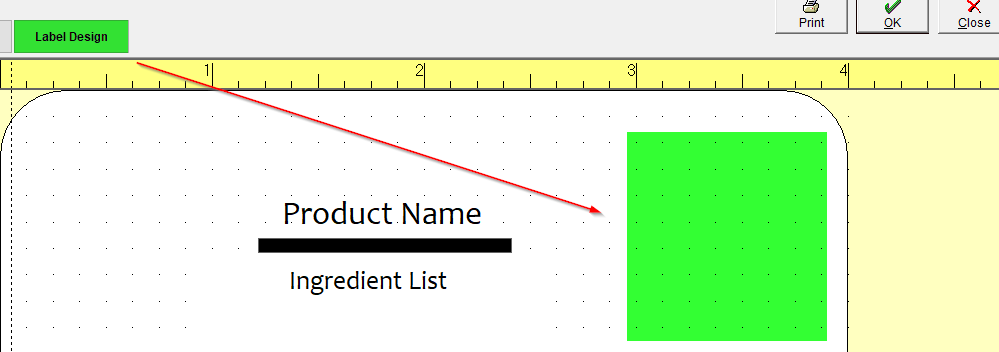

- Make sure you're set to Label Design, then make room for the label to be applied.

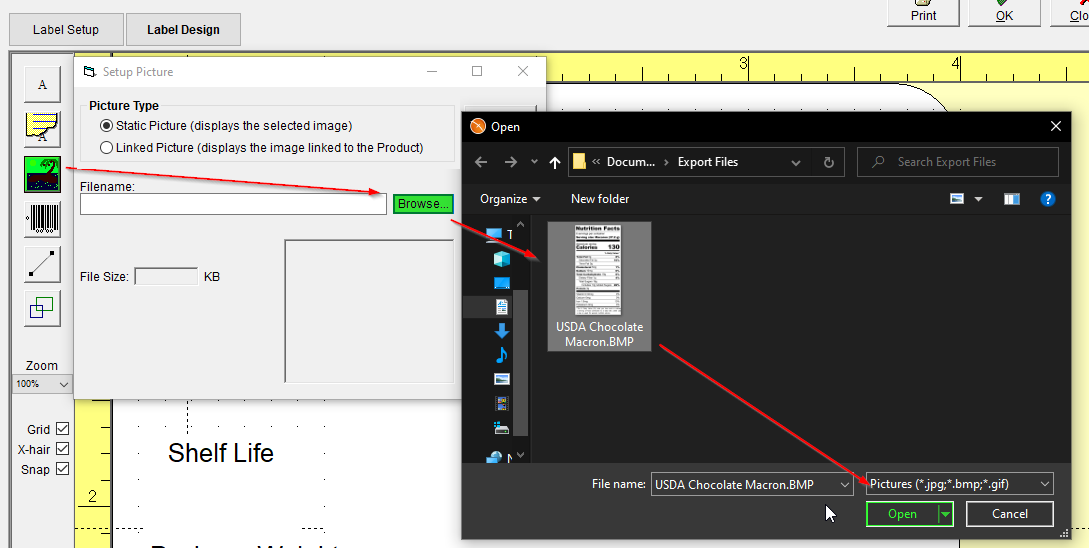

- Select the Image Selection, Choose Browse and then select the Facts Panel you would like to Import onto the Label.

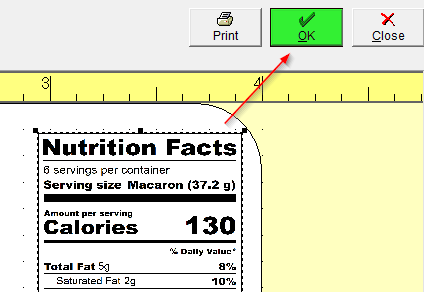

- The Imported Facts Panel may be resized and may need some adjustment until it looks perfect! Once finished, press OK.
The Label will now print with the new Image you have added, the greatest benefit is the allowance to resize. Please ensure the addition of panels is allowed in your region or country before proceeding with any changes!
